SLOTTED SCREEN BRIDGE PIPES

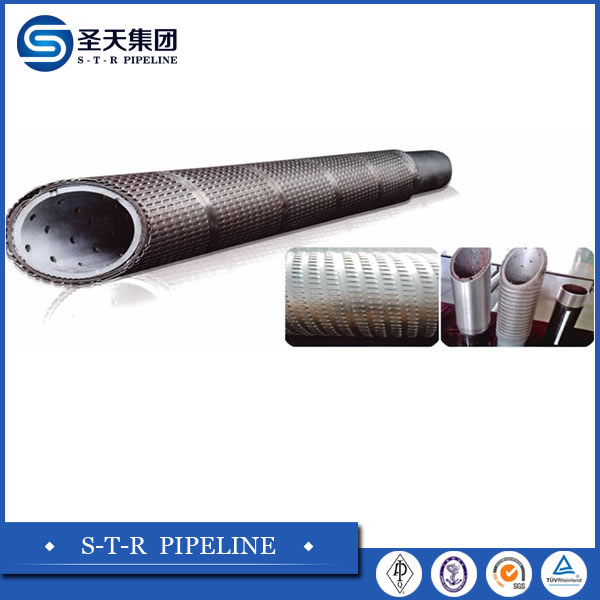

PIC-(SLOTTED SCREEN BRIDGE PIPES)
Bridge Slot Screen
Bridge Slotted Screen Pipe is a new product which is composed of central tube, precise punched slotted screen jacket and stainless steel ring. It has characteristics such as exquisite controlled hole, high percentage of open area, strong integral strength, resistant to deformation to corrosion and high reliability etc.
| 桥式筛管 Bridge Slot Screen | ||||
| Screen | API Pipe | |||
| ID (mm) | OD (mm) | SLOT (mm) | Normal size (inch) | OD (mm) |
| 63 | 73 | 0.10-3 | 2-3/8” | 60.3 |
| 73 | 85 | 2-7/8” | 73 | |
| 92 | 102 | 3-1/2” | 88.9 | |
| 103 | 127 | 4” | 101.6 | |
| 116 | 130 | 4-1/2” | 114.3 | |
| 129 | 142 | 5” | 127 | |
| 142 | 154 | 5-1/2” | 139.7 | |
| 172 | 184 | 0.15-3 | 6-5/8” | 168.3 |
| 183 | 195 | 7” | 177.8 | |
| 220 | 232 | 8-5/8” | 219.1 | |
| 246 | 260 | 0.25-3 | 9-5/8” | 244.48 |
| 276 | 290 | 10-3/4” | 273.05 | |
| 342 | 355 | 13-3/8” | 339.7 | |
| Length of screen > 5mm*1 | Length of pipe | 5.8 | ||
| Length of screen 4.5mm*2 | 9.3-9.6 | |||
| Length of screen 5mm*2 | 11 to 12 |
|||
